3D Scene Reconstruction from Monocular Images using SFM

A classical computer vision pipeline for 3D scene reconstruction using the Structure from Motion (SfM) algorithm.

Github Link to the project - Link

This project reconstructs a 3D scene and estimates camera poses using a given set of six monocular images and their feature point correspondences. The pipeline involves feature detection, camera pose estimation, and 3D point triangulation.

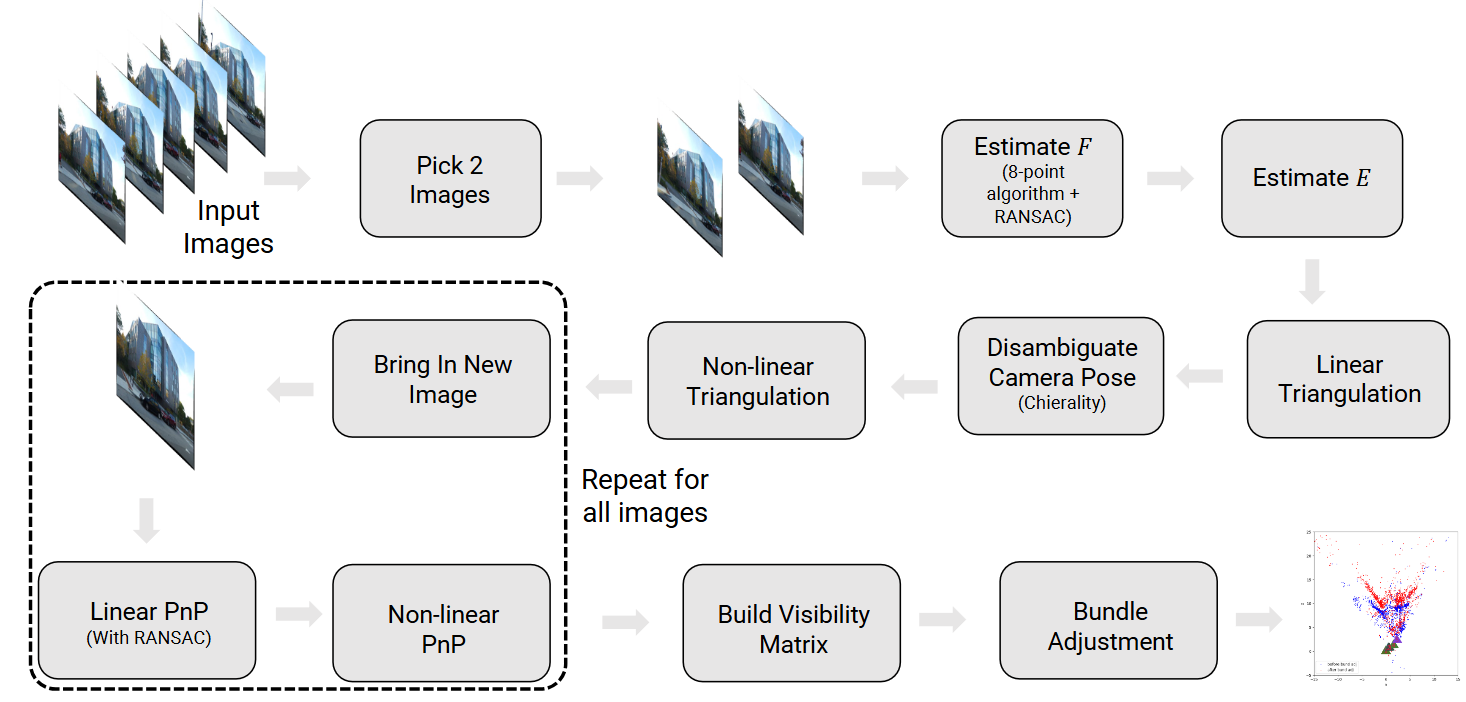

Pipeline Flowchart showing the overall process of SfM.

Pipeline

  1. Feature Detection & Correspondences
    • Extract keypoints and match features across images.
  2. Fundamental & Essential Matrix Estimation
    • Compute the fundamental matrix to remove outliers and the essential matrix to estimate relative camera poses.
  3. Camera Pose Recovery
    • Solve for possible camera poses and determine the correct one.
  4. Linear Triangulation
    • Estimate 3D points from matched feature correspondences.
  5. Non-Linear Triangulation
    • Refine 3D points using optimization techniques.
  6. Pose Estimation (PnP & RANSAC)
    • Use Perspective-n-Point (PnP) with RANSAC to estimate camera poses.
  7. Bundle Adjustment
    • Optimize camera parameters and 3D points for better accuracy.

Output

  • Sparse 3D Point Cloud: A set of reconstructed 3D points representing the scene.
  • Camera Poses: Estimated positions and orientations of the cameras.
Final 3D reconstruction of the Unity Hall Building at WPI using SfM (Top View)
