Diffusion Models for Image Data Generation

An application of Denoising Diffusion Probabilistic Models (DDPM) to generate high-quality synthetic training data for an image classifier using the CIFAR-10 dataset.

Github Link to the project - Link

In the age of Deep Learning, there is a huge need for data collection for efficiently training these models. but collecting high-quality datasets is often expensive, time-consuming, or even impractical. Synthetic data generation offers a solution to this problem—creating realistic, artificial data to train models effectively.

Collecting real-world data can be risky—foggy conditions, rare and unpredictable events, like accidents, are difficult to capture in datasets but crucial for training AI models.

This project discusses the implementation of a particular method of generation of artifical data - namely Diffusion Models. The aim of this project is to use Diffusion Models to generate high-quality synthetic training data for an image classifier using the CIFAR-10 dataset.

Principle behind Diffusion Models

Diffusion Models work by adding noise to an image step by step until it becomes pure randomness. Then, they learn to reverse this process, gradually reconstructing meaningful images from noise. Mathematically, this involves two key steps:

  1. Forward Process (Noise Addition):
    A controlled amount of Gaussian noise is added at each step, following a Markov chain:

    \[q(x_t \mid x_{t-1}) = \mathcal{N}(x_t; \sqrt{1 - \beta_t} x_{t-1}, \beta_t I)\]

    where \(\beta_t\) is a small noise variance.

  2. Reverse Process (Denoising):
    A neural network learns to predict and remove this noise to reconstruct the original image:

    \[p(x_{t-1} \mid x_t) = \mathcal{N}(x_{t-1}; \mu_\theta(x_t, t), \sigma_t^2 I)\]

    where \(\mu_\theta\) is the learned mean function.

</div>

</div>

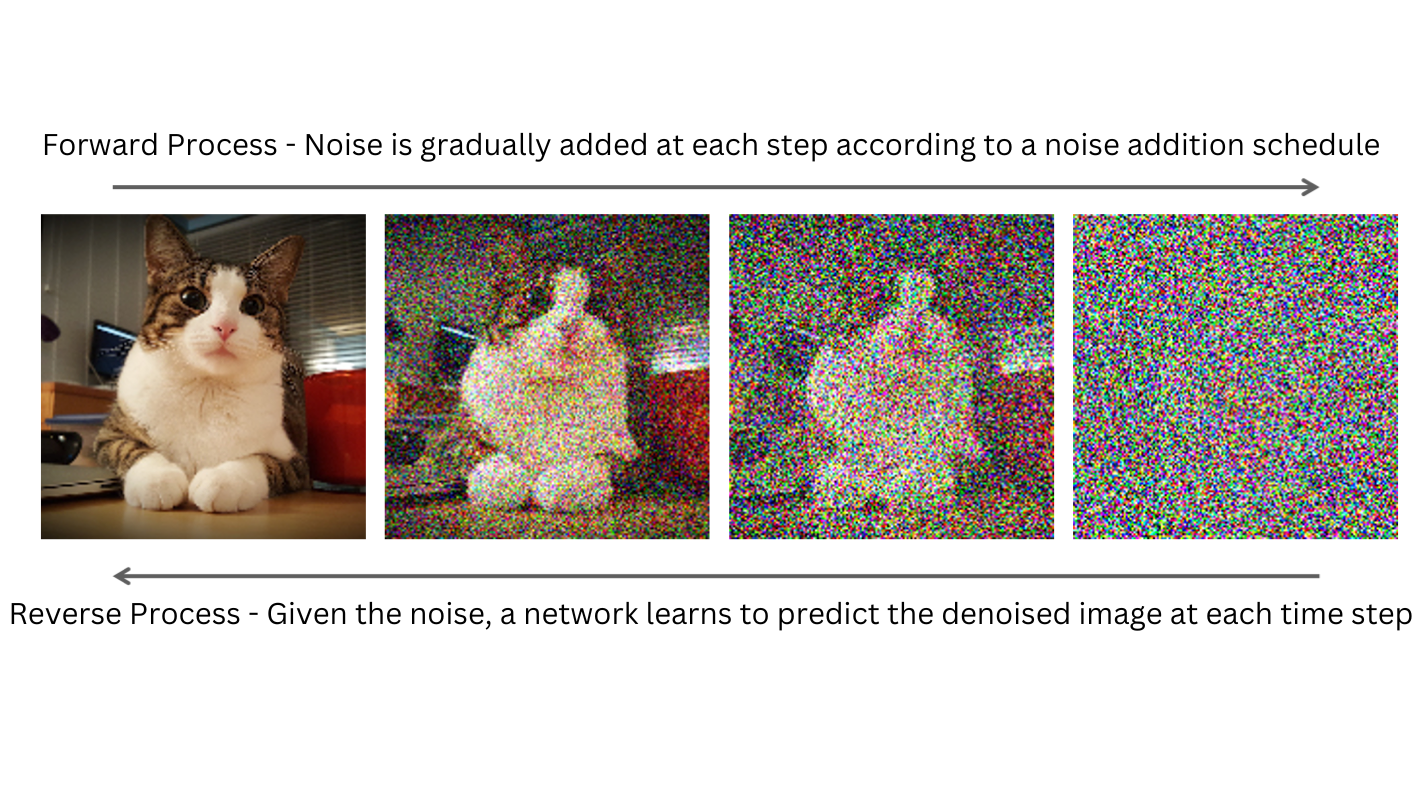

Visual description of the Diffusion Process

Results

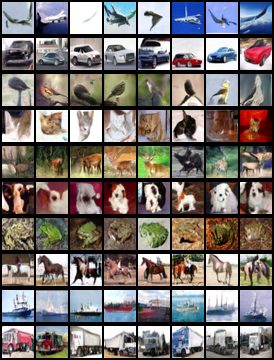

From the above pipeline, images were generated for all 10 classes and the generated images are as follows.

Generated Image data for all 10 classes in CIFAR-10 Dataset using DDPM with a cosine scheduler

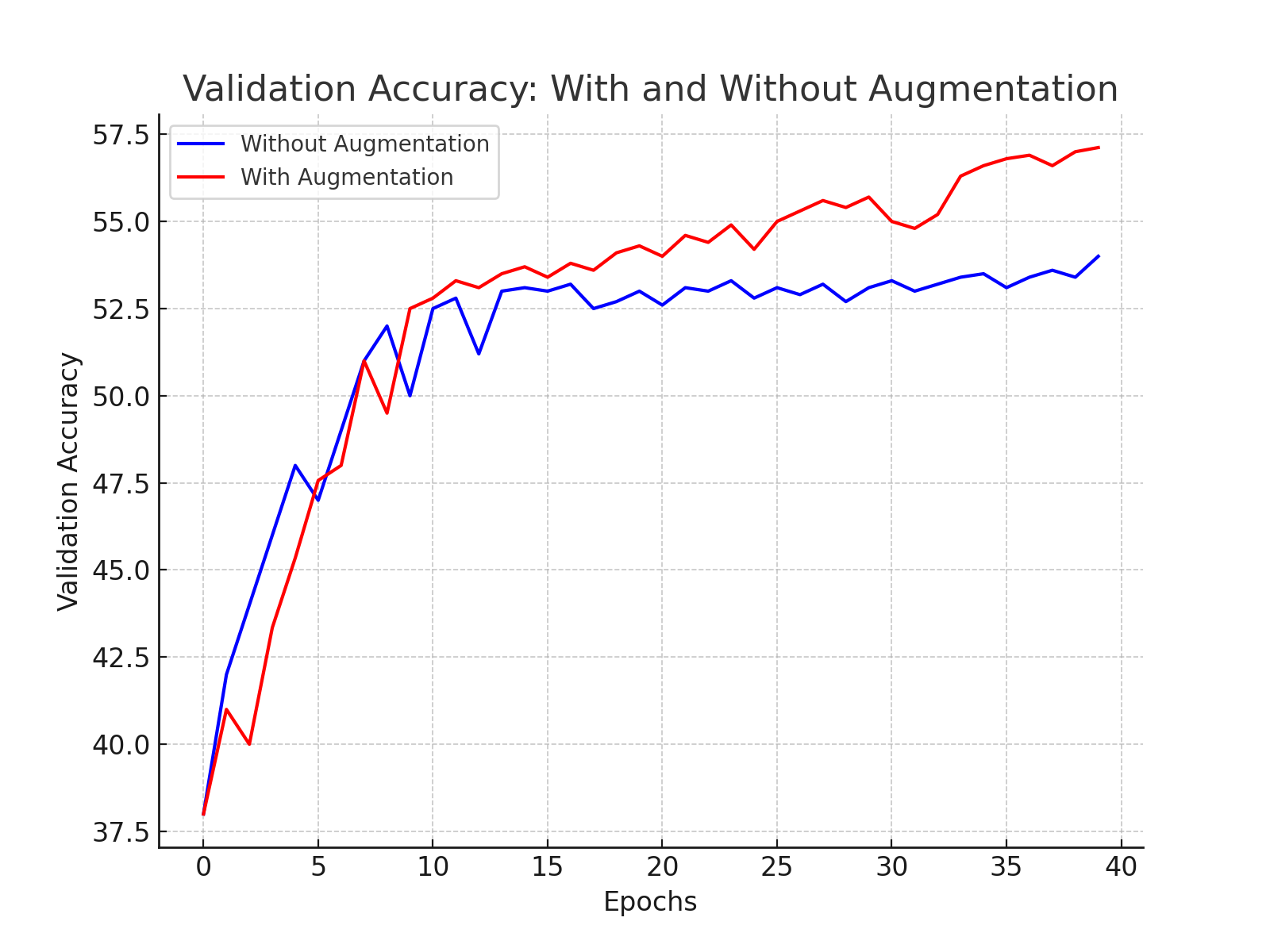

This is a plot of the performance of a very basic CNN classifier model before and after the data augmentation. The validation accuracy of the model improved from 54% to 57.12% after augmentation.

Validation Accuracy of the CNN Model before and after Data Augmentation
