Adversarial Patch Generation for Monocular Depth Networks

Customised implementation of this paper by Yamanaka et. al. to attack Depth networks with Adversarial patches.

Github Link to the project - Link

Deep learning models, particularly neural networks for monocular depth estimation, are susceptible to adversarial attacks. This project explores how adversarial patches can manipulate depth perception by fooling a Depth Estimator Neural Network into estimating incorrect depths.

The goal is to train a patch that manipulates a depth estimator's output, forcing it to perceive incorrect depths in a targeted manner.

Methodology

This project follows a structured approach to generate adversarial patches:

  1. Patch Augmentation: Randomly initialized patches undergo transformations to mimic real-world variations.
  2. Patch Training: Optimizing a loss function to fool the depth estimator into predicting incorrect depths.
  3. Real-World Testing: Printing patches and testing their effectiveness on real-world images.

Patch Training Process

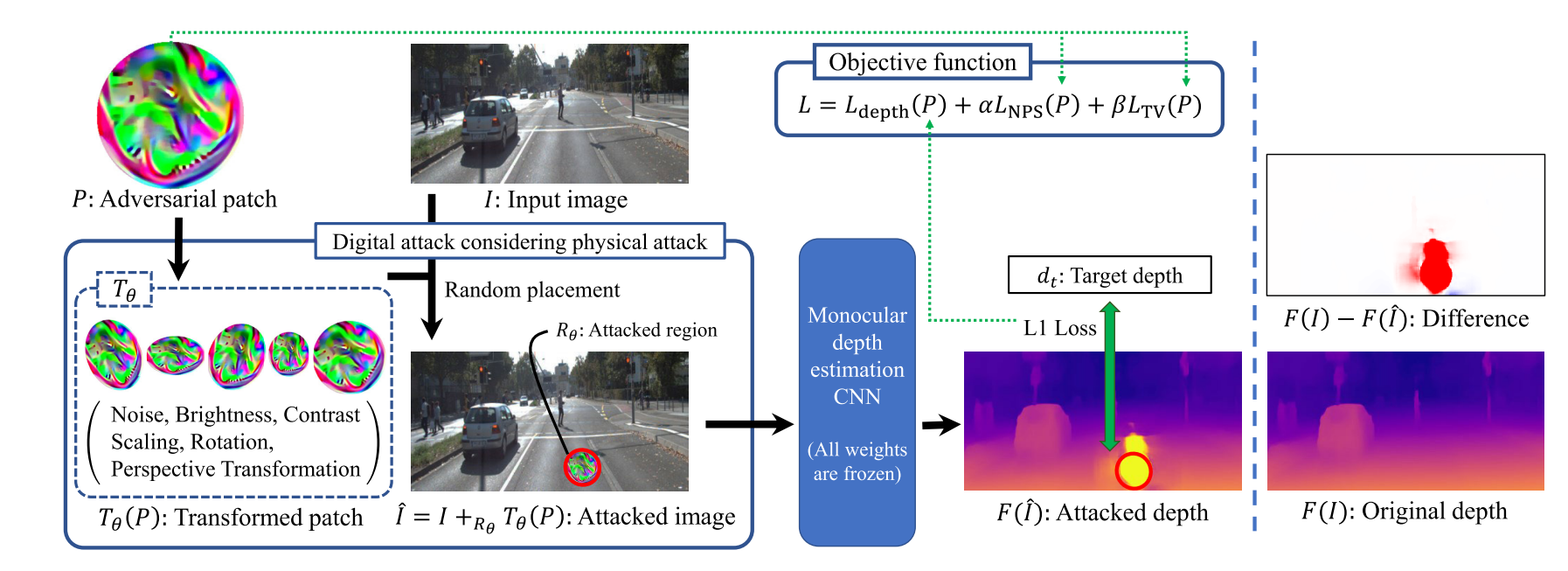

Adversarial patches are trained using a loss function that consists of three major components:

  1. Depth Loss: Forces a specific depth perception in the patch region.
  2. Non-Printability Score (NPS): Ensures printable colors.
  3. Total Variation (TV) Loss: Smooths the patch texture for real-world use.

Mathematically, this is represented as:

\[L = L_{depth} + \alpha L_{NPS} + \beta L_{TV}\]
Final patches obtanied after Training.

The pixel values of the patches are optimized through backpropagation until the optimal patch is found.

Patch Application on Images

The trained adversarial patch is then applied to images, and its impact on depth estimation is evaluated.

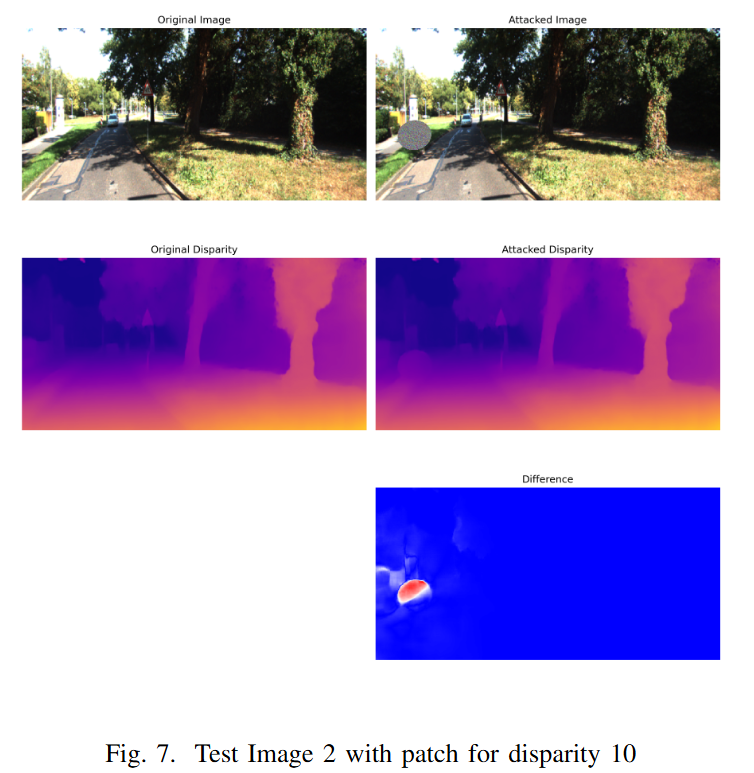

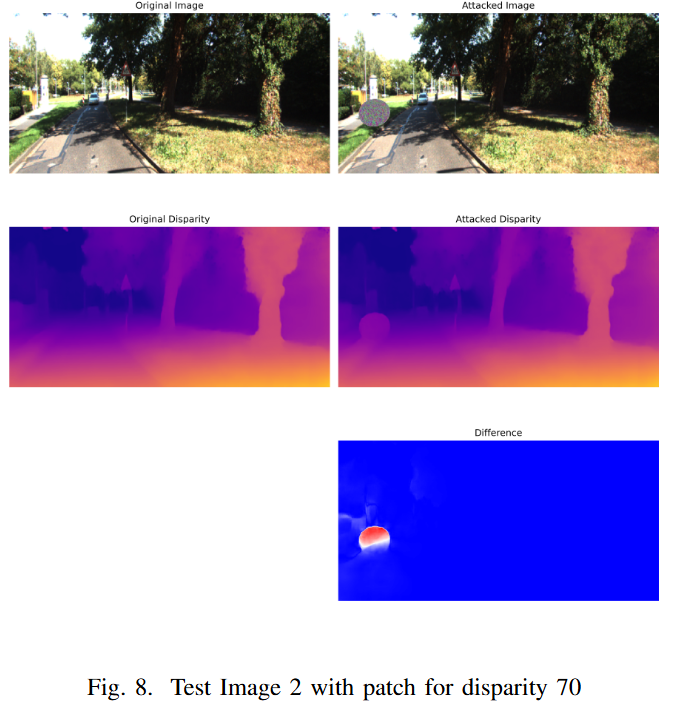

Results of the Depth Estimator Network for patches to mimic depths of 10m and 70m.

Real-World Testing

To test the effectiveness of adversarial patches outside of controlled environments, we printed the patches and placed them near objects in real-world scenes.

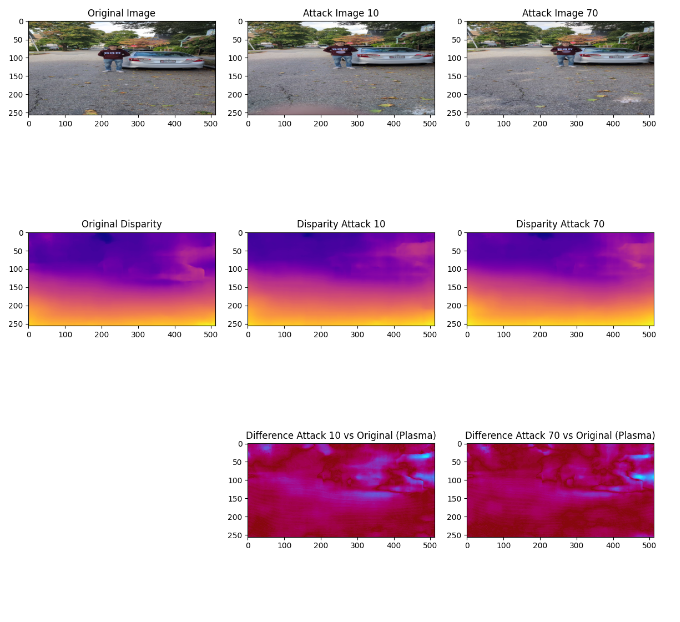

Real World Testing of the Obtained Patches.

Despite the additional errors due to the uneven camera motion, the patch successfully altered depth predictions for both the 10m and 70m distances.

Attack Using Fast Gradient Sign Method (FGSM)

Apart from adversarial patches, the FGSM attack was implemented to perturb input images adversarially.

\[x_{adv} = x + \epsilon \cdot sign(\nabla_x L)\]

This method provides a fast way to generate adversarial examples by maximizing the network’s error on a given input.
